HALE HAMILTON (VALVES)

Breathing and Diving Air

Breathing and Diving Air

- Design 360 bar - Control Panel - Over pressure protection - Fill, Vent and Vacuum valves - Air dryers for breathing air applications

Portable Charging Unit

Portable Charging Unit

- Outlet pressure ranges: 0 to 34.5 bar and 0 to 2 bar - 3m outlet hose - Tyre inflator and special tyre adaptor -Automatic shut off device - Weight: 19kg

Manual Stop Valve (SV60)

Manual Stop Valve (SV60)

- Suitable for oxygen and non corrosive gases - BSP G1/2" and G1" port connections - Upto 420 bar

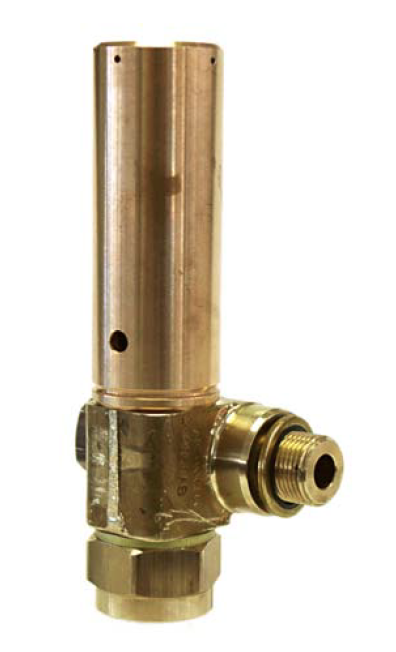

Relief Valve

Relief Valve

- Suitable for oxygen and non corrosive gases - BSP G3/8" fixed or Banjo connections - Upto 420 bar

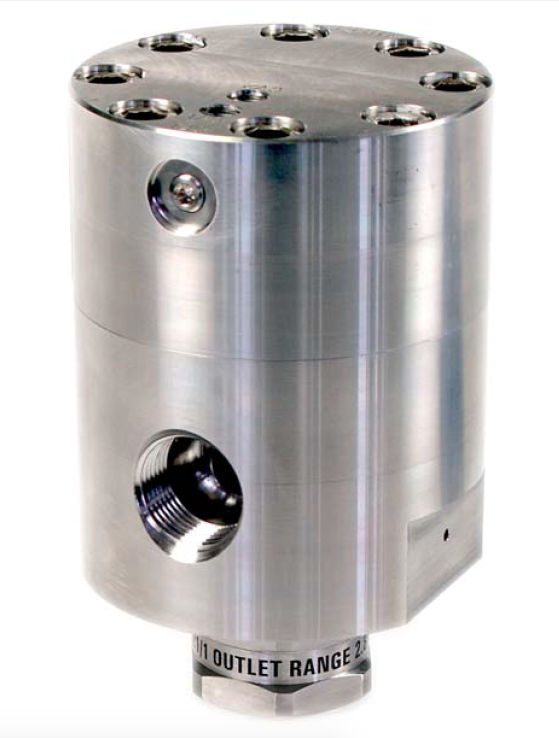

Dome Loaded Regulators

Dome Loaded Regulators

- Balanced Dome Loaded Pressure Regulators - Available in; Stainless Steel, Brass, Nickel Aluminium Bronze and Aluminium - Outlet pressure aranging from 2.7 to 241 bar - CV values of 1.8 & 5 - BSP G1" port connections

Dome Loaded Regulator (LP)

Dome Loaded Regulator (LP)

- Excellent control of low to medium pressure - Internal or external Dome Loading - Available in; Stainless Steel, Brass, Nickel Aluminium Bronze and Aluminium - Outlet pressure ranging from 0.07 to 65 bar - CV values ranging from 1.1 to 32

Actuated Stop Valve

Actuated Stop Valve

- Suitable for oxygen and non corrosive gas service - Normally Open or Closed - Visual indication of valve position - Position feedback sensors - Additional port for instrumentation or vent functions

Manual Stop Valve (SV47)

Manual Stop Valve (SV47)

- Suitable for oxygen and non corrosive gases - BSP G1/4" and 1/4" NPT port connections - Upto 420 bar

Manual Stop Valve (N Series)

Manual Stop Valve (N Series)

- Suitable for oxygen and non corrosive gases - BSP G1/4" to G3/4" port connections - Upto 420 bar

Non Return Valve

Non Return Valve

- Suitable for oxygen and non corrosive gases - BSP G1/4" to G 1 1/4" port connections - Upto 420 bar

Filter

Filter

- Suitable for oxygen, Inert and Hydrogen Application - BSP G1" to G2" or NPT port connections - Upto 400 bar

Spring Loaded Regulator

Spring Loaded Regulator

- Generally soft seated for Gas Application - Hard seated CTE tasted versions for Oxygen service - Self Relieving as standard - NPT 3/4" port connections - Inlet 310 bar - Outlet 0.7 to 103 bar
